ABOUT US
JGE ENGINEERING SDN BHD has been expanding its engineering services on emission monitoring since its establishment in 2010. We are completely sincere, enthusiastic and wholeheartedly committed to delivering solutions tailored to our client's requirement. For each project, we work carefully to stay within budget while providing maximum value for our clients and their needs.
NEWS
MAY 3, 2021
REGISTERED FOR CEMS
JGE IS NOW PETRONAS
JGE Engineering was proudly registered with PETRONAS for 'Continuous Emission Monitoring System (CEMS) & Sampling System'
NOV 23, 2016
AS CEMS CONSULTANT
JGE ENDORSED BY DOE

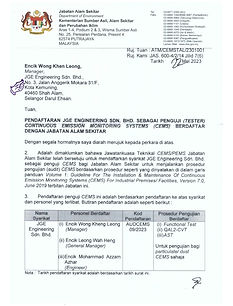

JGE Engineering was proudly endorsed by Jabatan Alam Sekitar (DOE) as CEMS consultant with capability to offer gas, dust and opacity monitoring for clients from various industries.
SERVICES
We create innovative engineering solutions and implement them with continual service support for sustainable high performance. Our team works hand in hand with you to implement the maintenance program, system verification, calibration as well as necessary adjustment and modification to suit changes to your process.
ANALYZER
SAMPLING
SYSTEM
MCERT
ACCREDITED
ONLINE TOC ANALYZER
ZIRCONIA
OXYGEN
ANALYZER
CONTINUOUS
EMISSION
MONITORING
SYSTEM
CALIBRATION
& SERVICING
OUR PRODUCTS
TURNKEY
CEMS
PROJECT
TURNKEY CEMS PROJECT
We provide turnkey solution to CEMS application ranging from Power Plant, Chemical Plant, Refineries to Waste Incinerator.Our One Stop Solution includes Registration with DOE, Engineering, Installation, Commissioning, Data link with DOE and QA/QC of the CEMS.
MULTIGAS
ANALYZER
MGA12
MULTIGAS ANALYZER MGA12
The multi gas analyser MGA 12 serves the continuous measurement of pollutants in flue gas (e.g. CO,CO2, SO2, NO) and the measurement of O2 as well as the continuous process control.The analyser device is suitability tested according to DIN EN 15267‑3 and certified in compliance with QAL1. As a part of the analyser system MGA 12 it is suitability tested and certified for systems after “TA Luft”, 13th and 27th BImSchV according to DIN EN 15267-3.
MULTIGAS
ANALYZER
MCA10
MULTIGAS ANALYZER MCA10
The multi component analyser MCA 10 HWIR serves the continuous emission measurement of pollutants in flue gas (e.g. CO, NO, N2O, NO2, NH3, CH4, HCl, SO2, HF; as system additionally TOC) and the measurement of CO2, H2O and O2 as well as the continuous process control.The device is suitability tested according to DIN EN 15267‑3 and certified in compliance with QAL1 as well as MCERTS Performance Standards. As a part of the analyser system MCA 10 HWIR it is suitability tested and certified for systems after “TA Luft”, 17th and 27th BImSchV according to DIN EN 15267-3.
DUST
DENSITY
METER
PFM02V
DENSITY DUST METER
PFM02V
The dust measurement device PFM 02 V is an in-situ dust measurement in combination with the flow measuring device FMD 02 or other velocity measuring devices.The use of the triboelectric measuring principle (charge transfer at conducting surfaces) guarantees a device simply to install and handle as well as a timely monitoring of the dust emissions.
DUST
DENSITY
METER
PFM06E
DUST DENSITY METER
PFM06E
The dust concentration measuring device PFM 06 ED is used for the continuous extractive measurement of dust contents in wet and sticky exhaust gases. Measuring gas is drawn off the process and led to the measuring cell via a probe being temperature controlled. Inside of the measuring cell there is an optic measuring unit.It is suitability tested according to EN 15267-3 (QAL1)
